CERAMIC FIBER MODULES

UNIHEAT MODULE

Modules are a versatile family of high temperature insulating blocks which are manufactured by combining the latest technologies in fiber manufacturing, processing, and attachment hardware designed to yield a variety of options to fit almost any high temperature requirement.
Standard sizes
300x300x300 mm or on request
Density
160-240 kg/m3


----------
Key Features
- Low Thermal Conductivity
- Low Heat Storage
- High Tensile Strength
- Thermal Shock Resistance
- No dry it required
- Contains no Asbestos
- Contains no Binder
- Easy to Install


----------
-
HPS 1260
HTZ 1425
HP 1600
BIO
Physical Properties
Max. working temperature, oC
1260
1425
1600
1200
Long term. operat. temperature, oC
1160
1320
1500
1100
Density, kg/m3
160-240
Thermal shrinkage, %
<3

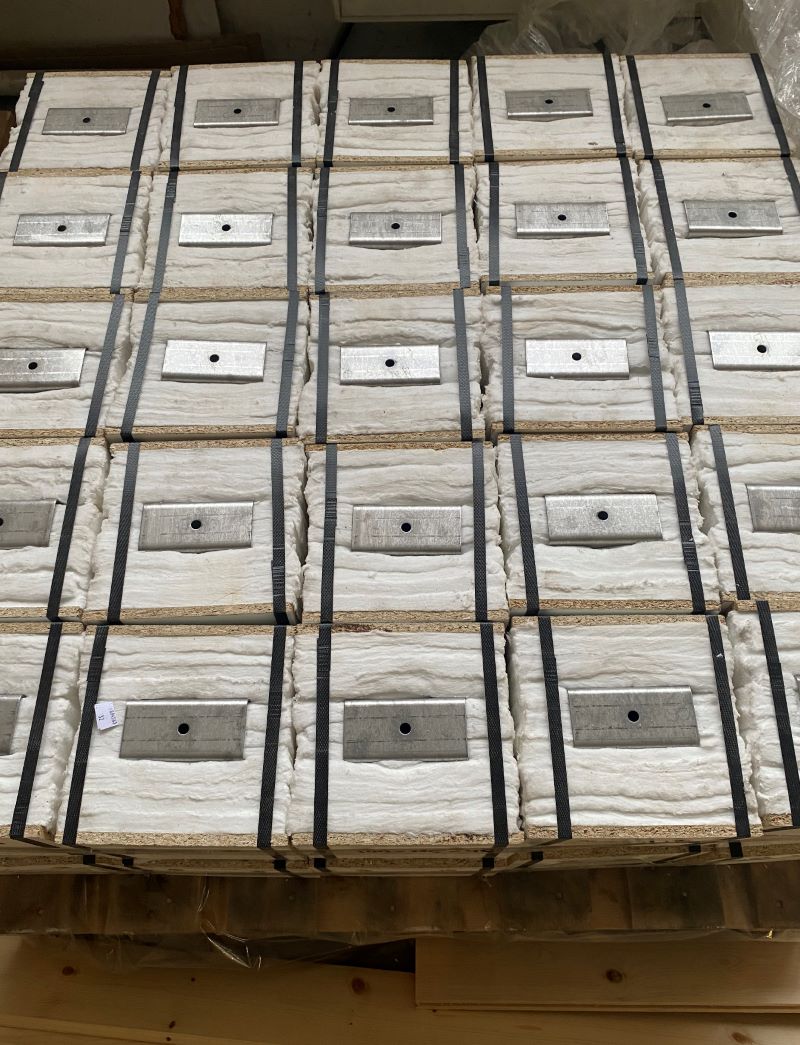

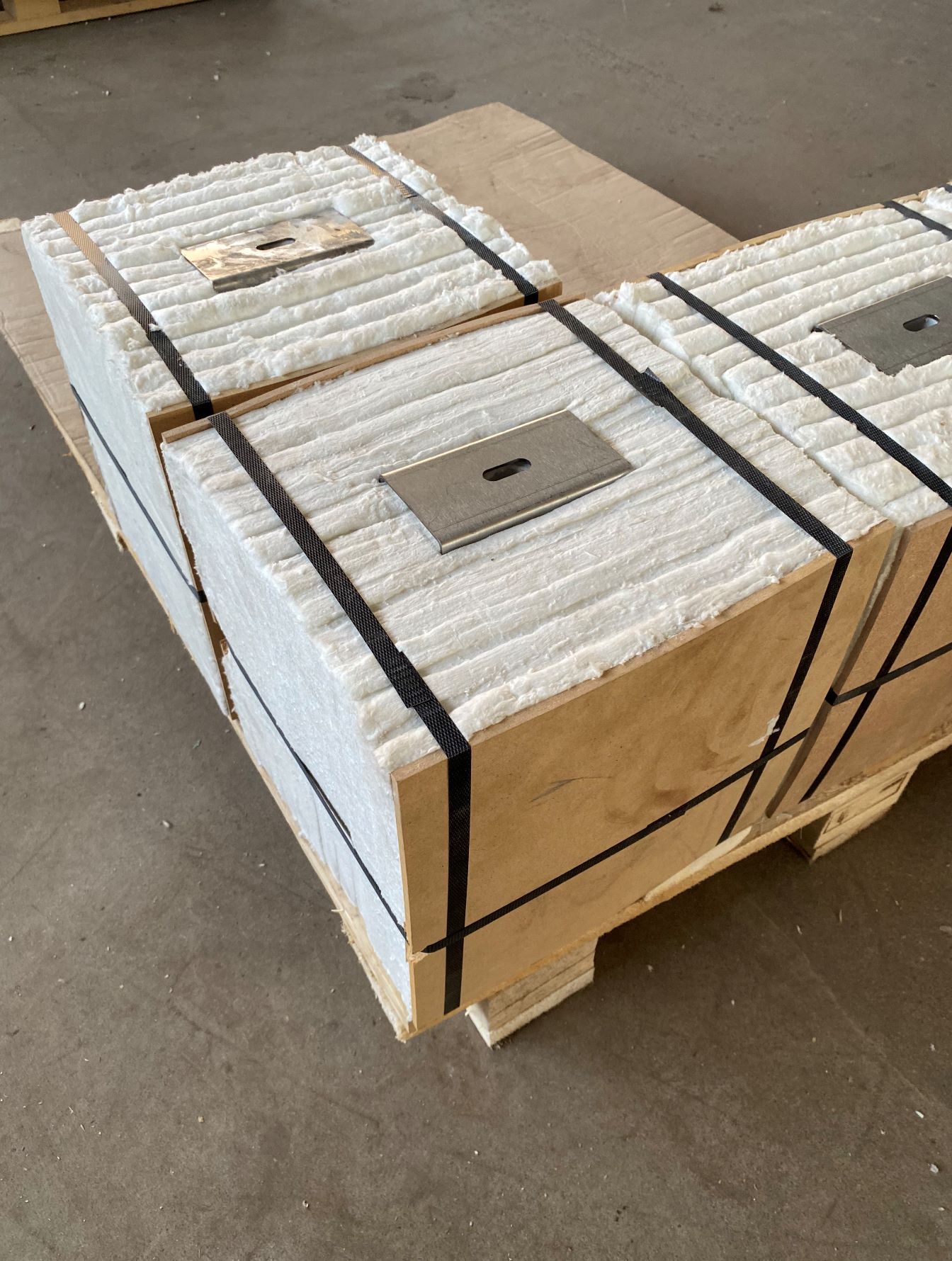

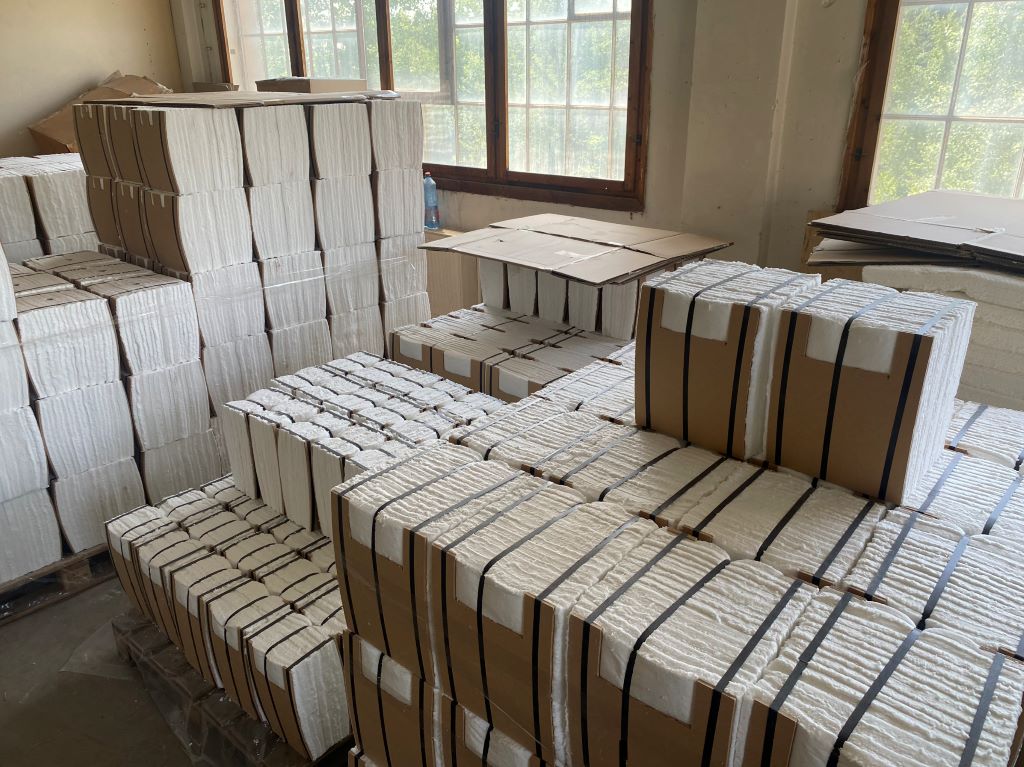

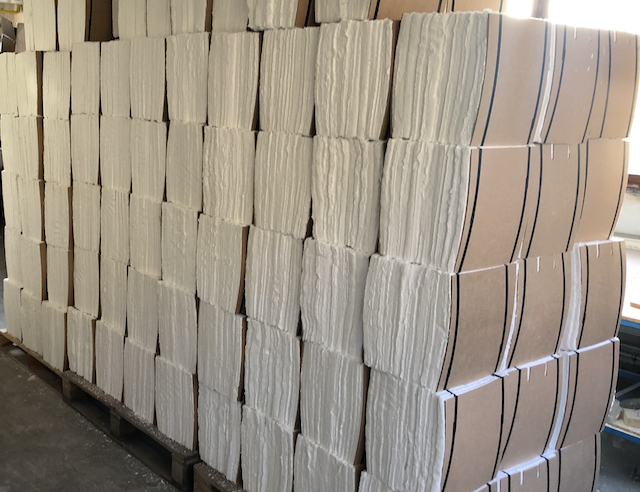

Packaging
on pallets
Chemical composition, %
Al2O3
45-46
33-37
72
-
SiO2
51-52
47-51
28
60-70
ZrO2
-
13-19
-
-
Thermal shrinkage, %
<3


----------

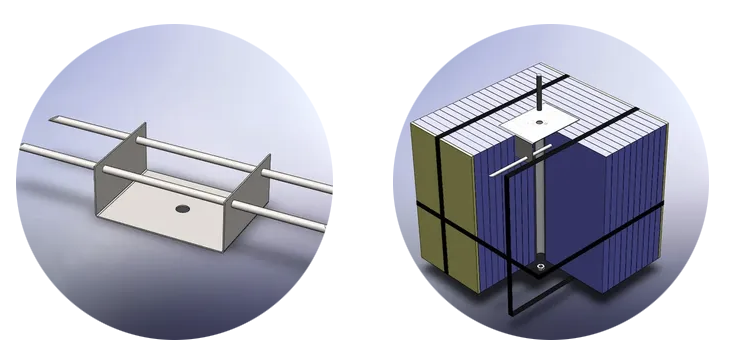

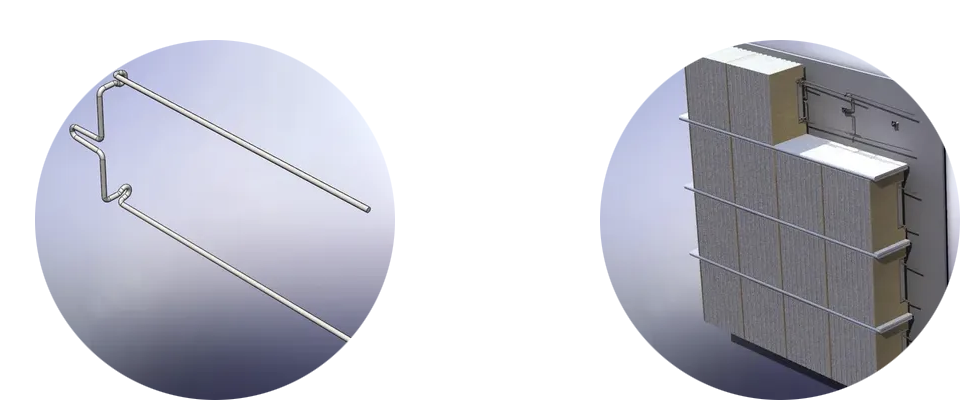

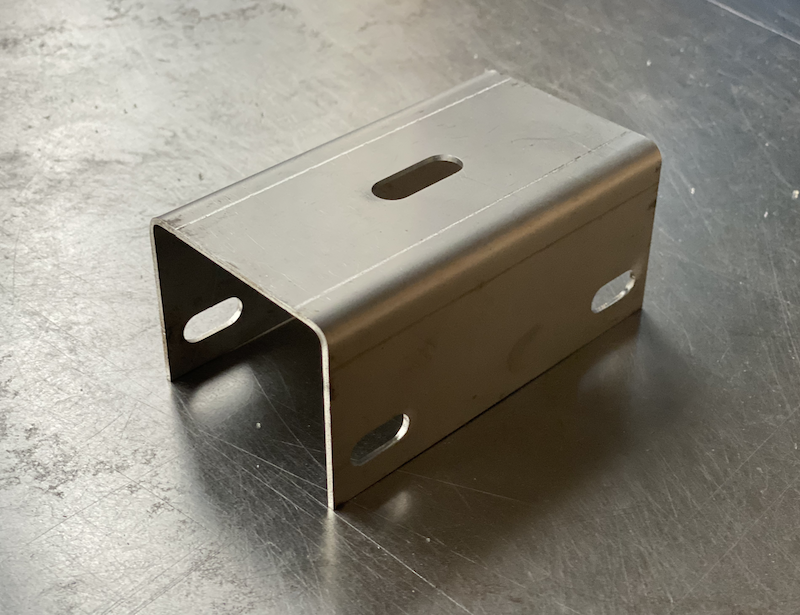

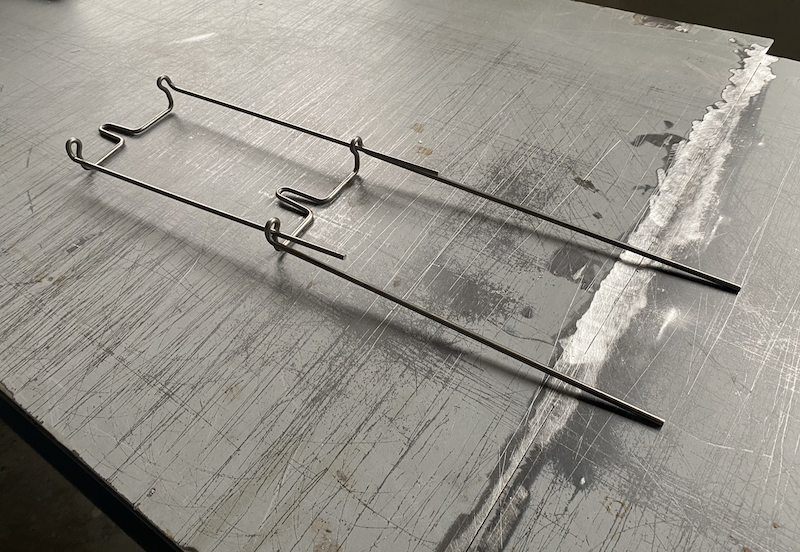

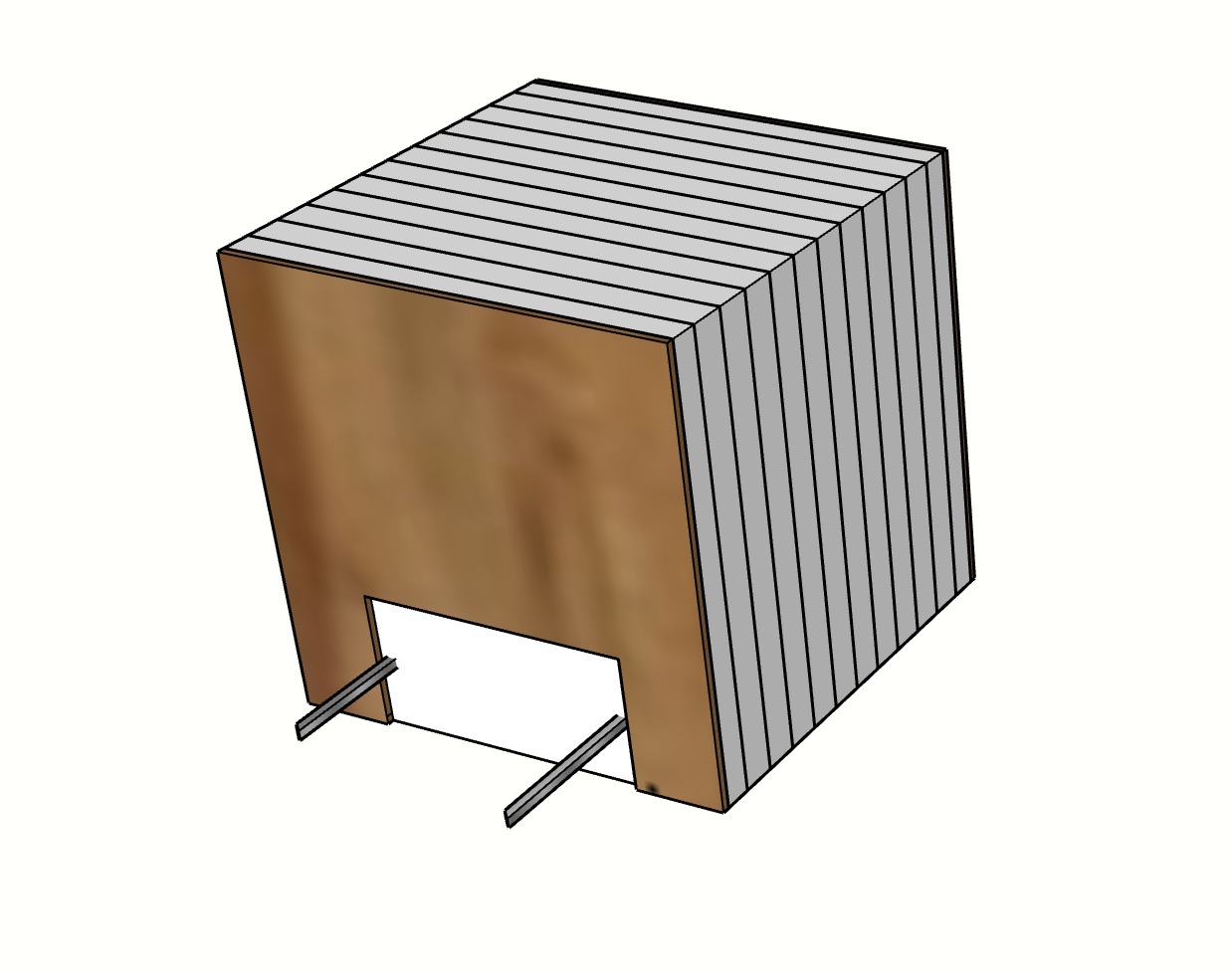

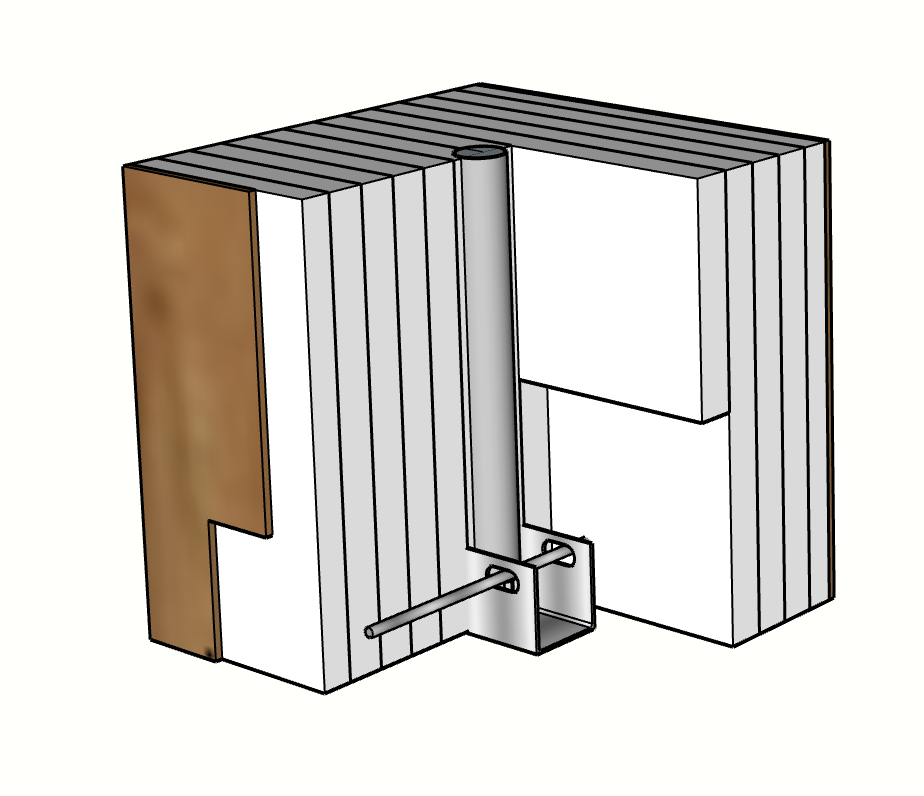

Standard anchors:
DPI-1
WEA-1
download TDS
