CERAMIC FIBER BLANKETS

UNIHEAT BLANKET

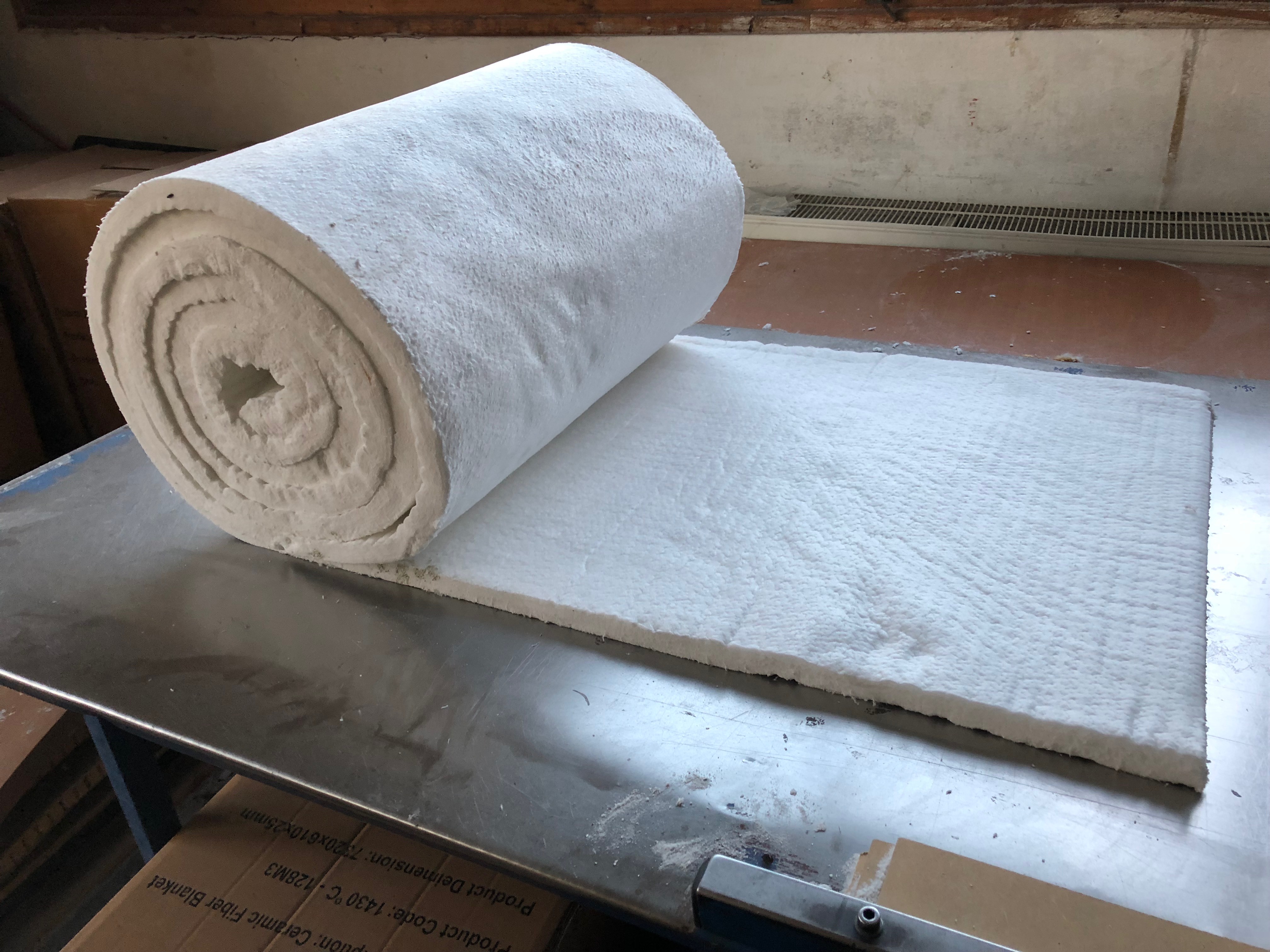

UNIHEAT BLANKET - High-temperature insulation blanket composed of long, flexible, interwoven fibers manufactured by the spun process of high purity ceramic fibers. Lightweight, easy to install, offers advantages such as low thermal conductivity, low heat storage, excellent thermal shock and chemical attack resistance.

Standard sizes

Thikness, mm

Width, mm

Length, mm

m² in roll

Weight, kg

610

14 640

8,93

96 kg/m³ =10,7 kg

610

9 640

5,88

610

7 320

4,47

128kg/m³ =14,3 kg

610

4 820

2,94

610

3 660

2,23

160kg/m³ =17,9 kg

----------

Chemistry

Alumina, Silica

Composition

RCF (Refractory Ceramic Fiber)

----------

Key Features

- Low Thermal Conductivity

- Low Heat Storage

- High Tensile Strength

- Thermal Shock Resistance

- Sound Absorption

- Easy to Install

-Contains no Binder

- Contains no Asbestos

----------

HPS 1260

HTZ 1425

HP 1600

BIO 1200

Physical Properties

Maximum Use Temperature, ^oC

1260

1430

1600

1200

Continuous Use Temperature^{, o}C

1126

1300

1500

1100

Density, kg/m³

96 - 128 - 160

Shrinkage, %

Packaging

carton box

Chemical composition, %

Al₂O₃

44-46

33-37

SiO₂

51-52

47-51

60-70

ZrO₂

13-19

Thermal conductivity, W/mK for 128 kg/m³

200 ^oC

0,06

400 ^oC

0,10

600 ^oC

0,16

800 ^oC

0,25

0,19

1000 ^oC

0,35

0,29

download TDS
